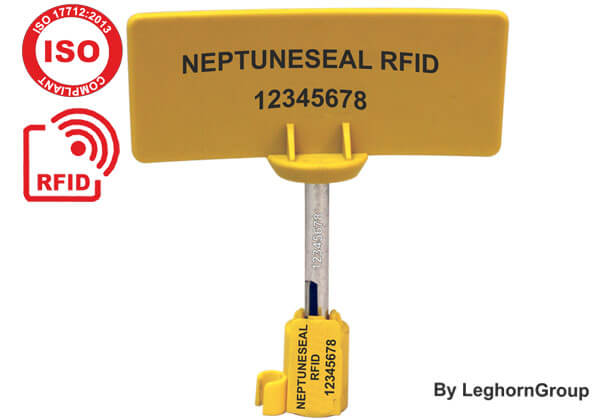

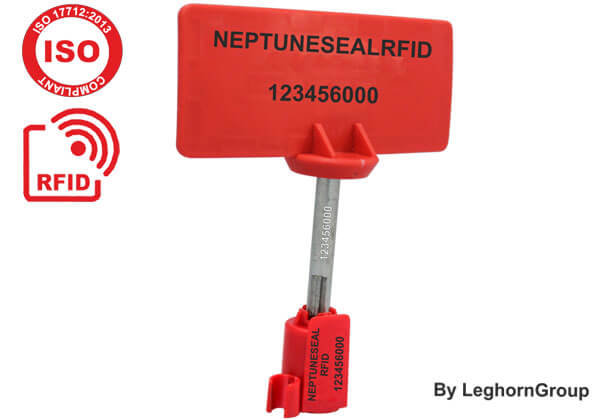

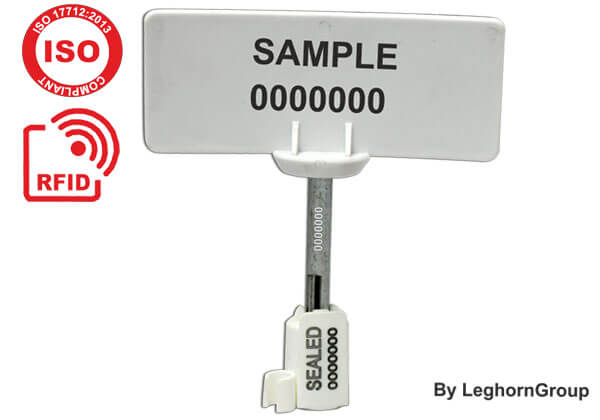

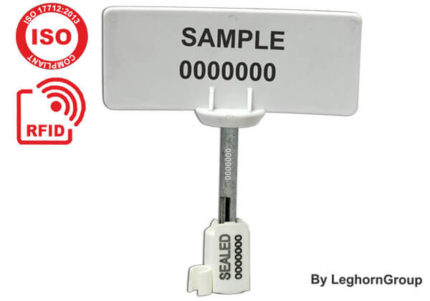

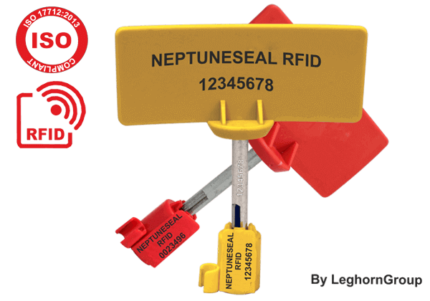

High security UHF RFID bolt seal NEPTUNE SEAL

Description

LeghornGroup RFID NEPTUNE SEAL tamper evidence is a sturdy container bolt-lock type e-seal that combines the necessary degree of high security required by the technical specification ISO 17712:2013 with the electronic security offered by the latest techniques of passive radio frequency-based automatic identification and data communication (RFID). The outer ABS plastic housing of the seal can be customized on request with laser marks including logo, sequential numbering, text, barcode or QRcode. It contains an electronic RFID chip tag with unique code that not only enables the automatic identification of any container or transport vehicle, which the seal is attached to, but also allows immediate, easy and reliable readings of the integrity status of the seal, by giving information about any tamper evidence and attempt to manipulate the e-seal. This is the ideal solution for guaranteeing cargo security, tamper evidence along the shipping and supply chain.

RFID TAMPER EVIDENCE e-SEAL is the step ahead in front of already existing RFID seals.
RFID NEPTUNE SEAL TAMPER EVIDENCE main features:
– Certified in compliance with requirements as per ISO 17712:2013 High Security Seal
– It can be read quickly and accurately by static gateway reading systems or by handheld devices assigned to check point personnel.
– Any tampering event occurring with the e-seal is stored in its chip memory. This activates the – TAG TAMPER ALARM, which provides the status of the seal at readings (tampered/not tampered, i.e. breached or intact seal);
– In the event of tampering, the e-seal irreversibly changes its electronic status. The TAMPER status is automatically flagged up when reading is taken.
– The RFID chip can also store additional information. The chip can be written by  using the RFID reader/writer device. Further information added and the chip itself can be password protected.

The key pieces of information that the seal provides are:
– RFID e-seal serial number
– Date and time when the reading is taken
– Number of readings taken for each RFID e-seal
– Registration sequence in the event of having two or more RFID e-seals on two containers on the same trailer
– Status of the  seal (TAMPERED / NOT TAMPERED)



TECHNICAL SPECIFICATION

Radio Frequency specification
Frequency …………………………………………… 860 – 960 MHz – UHF EPC Global
Reference RF Standard ……………………….. ISO/IEC 18000-63
RF Protocol …………………………………………. EPC Class 1 Gen2 / ISO/IEC 18000-63
Technology …………………………………………. Passive
Integrated circuit ………………………………… NXP

Mechanical specification
IP Protection ………………………………………. IP66
Operative Temperature ……………………… – 30°C / + 80 °C
Storage Temperature …………………………. – 30°C / + 80 °C
ISO 17712:2013 …………………………………… Yes

Electronic specification
Reading distance handheld reader ……… 3 m (depending on the reader)
Reading distance gate reader ……………… 8 m (depending on the reader)
Quality ………………………………………………… 100% performance tested
User read / write memory …………………… Yes
Read / write cycle ………………………………… 10000
Memory size ……………………………………….. 128 bit from chip NXP G2iL+
Password protection ……………………………. Yes
Tamper Detection ……………………………….. Yes
TID (tag unique identification) ……………… Yes
S/N in memory (same of seal) ………………. Yes
Data retention ……………………………………… 20 year
Integration with handheld reader ………… commercial reader, OS ANDROID
Integration with gate reader ………………… commercial industrial reader

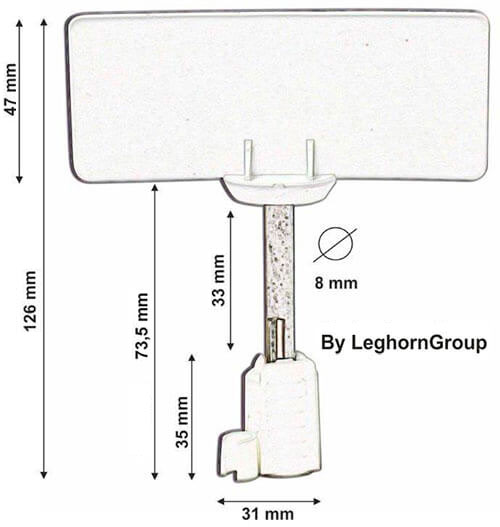

TECHNICAL DRAWING



SIZE
Metallic pin
Diameter: 8 mm
Length: 74 mm

Bolt size
Diameter: 22 mm

Electronic Part (flag): 42×115×4 mm
Weight: 70 gr



MATERIAL
Steel + ABS  o polystyrene per Restriction of Hazardous Substances (RoHS) listed in the European Directive 2002/EC.

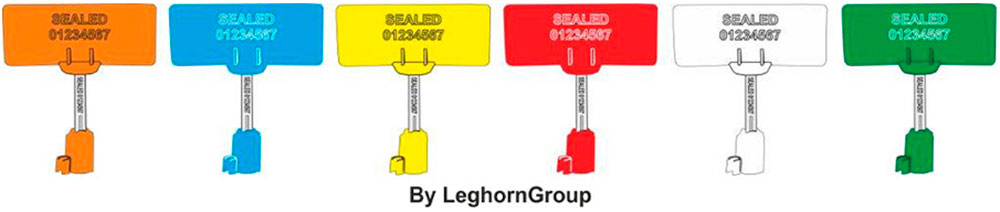

COLORS & CUSTOMIZATIONS
(Photos and drawings are indicative.)



PACKING
50 pcs per carton
Carton size: 32×25×15 cm
Carton weight: 5 kg

* LOGISTIC VERSION (ID only) AVAILABLE ON REQUEST

Needed certificates with the use of high security seals compliant with iso 17712: 2013

Certificate MIRDC

Certificate SGS
