MENTORSEAL ACTIVE SEAL

Electronic bolt security seal with Active Rfid system.

Specifications and design are subject to change without any notice or obligation from the manufacturer.

Description

Description

LEGHORN Srl has been dedicated to designing and producing mechanical security seals for the logistics sector. The dynamic company has a rich and well cultured background in anti tampering systems and the best means to tackle and prevent tampering or pilferage to your goods.

LEGHORN’s management team, aware of the importance of investing in projects that include electronic technology have spent the last 10 years developing and expanding their current range of products. The latest products manufactured in house combine the traditional methods of mechanical tamper prevention with the most modern usage of RFID technology.

LEGHORN is proud to present their first single use active Rfid seal.

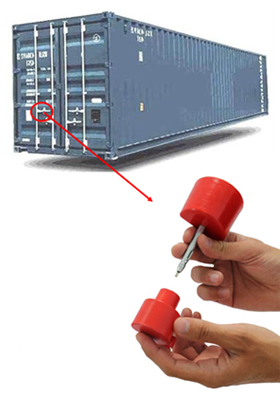

MENTORSEAL is an innovative seal that combines the high security of an ISO 17712:2013 approved seal, with the technical features of an active device that uses Radio frequency to automatically identify the container and/or vehicle.

The primary security function of the seal is integrated with the possibility of improving the logistics flow by keeping track of the container.

MENTORSEAL can be read with static gateway readers of handheld portable readers, that are equipped with the relevant reading module of the seal- operating on a double frequency 433 MHz -2.45 GHz.

Thanks to the presence of active RFID , the seal can communicate over significant distances (e.g. over 15m).

The seal is characterised by it’s own unique Identification code. Furthermore as it is a single use seal its pricing is extremely competitive.

Some of the main innovative features of MENTORSEAL are:

Guaranteeduniquenessof the coupling betweenthe head of theseal with thepinand barrel
Timestamp of when the seal is “born” stored in the memory;
Timestamp of when the seal is closed stored in the memory;
Timestamp of the opening /or tampering of the seal stored in the memory.

DATA COMMUNICAITON: Any data received from MENTORSEAL using a hand held reader can be downloaded to a server whilst offline or alternatively online using WiFi or GPRS; If working with a fixed reader it can be connected to a PC via an Erthernet communication interface.

TRACEABILITY: MENTORSEAL can store in its memory 15 Log and the container ID.
This allows the user the trace the logistics flow of the container using the information received.

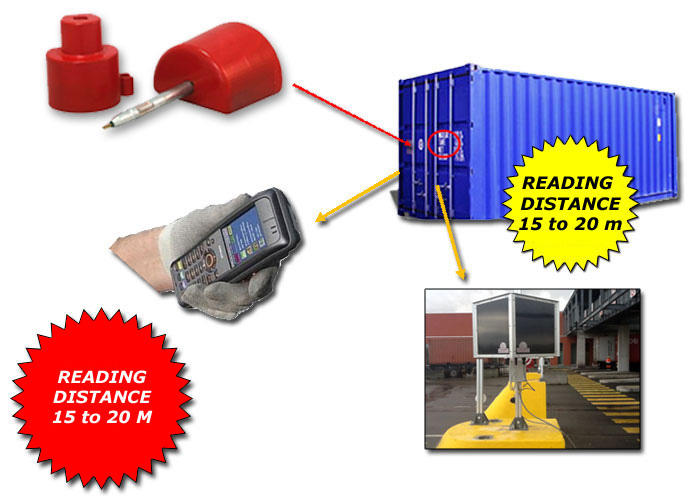

READING DISTANCE: MENTORSEAL can be read at a distance of over 15 m by way of “Contact reading” or “in line of sight”, allowing the reading to be taken whilst the container is in transit and speed up the security operations.

Radio Frequency specification
Frequency	4.33 MHz / 2.45 GHz
Reference RF Standard	ETSI EN 300-220 / ETSI EN 300-440
RF Protocol	Proprietary of the manufacturer
Technology	Active RFID
Mechanical specification
Material	Steel + ABS or polystyrene in accordance with Restriction of Hazardous Substances (RoHS) listed in the European Directive 2002/EC.
Industrial Protection	IP66
Operating Temperature	– 20°C / + 60 °C
Storage Temperature	– 55°C / + 125 °C

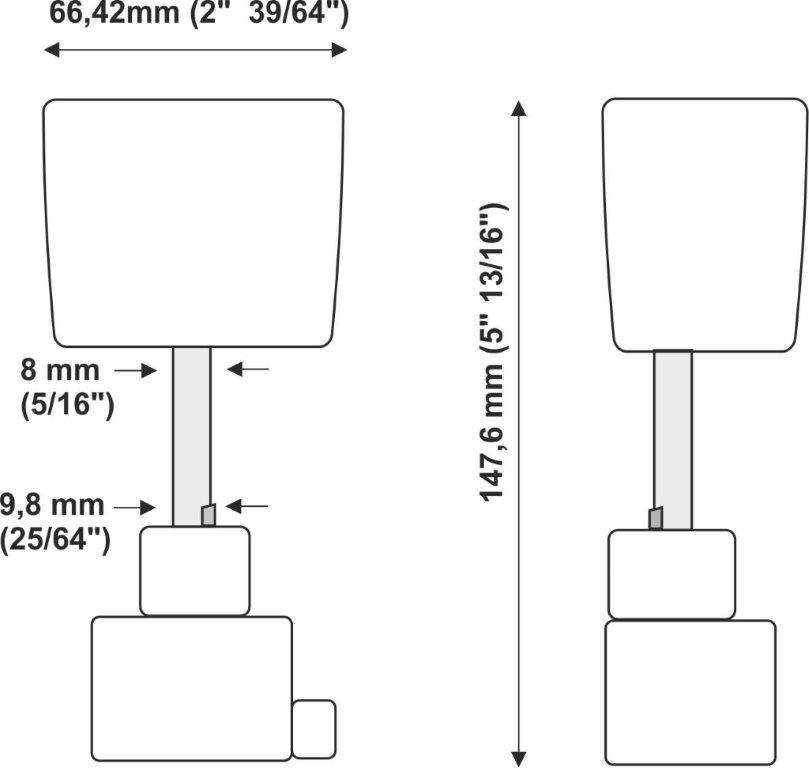

Electronic Part Size (flag)	mm 64x50x40
Metal pin size	8 mm diameter – lenght mm 74
Bolt size	32 mm diameter – lenght mm 40
Weight	135 g
ISO 17712:2013	yes
Package size	32x25x10 cm
Package weight	4 kg
Package number seal for box	24pcs
Personalization serial number	Yes

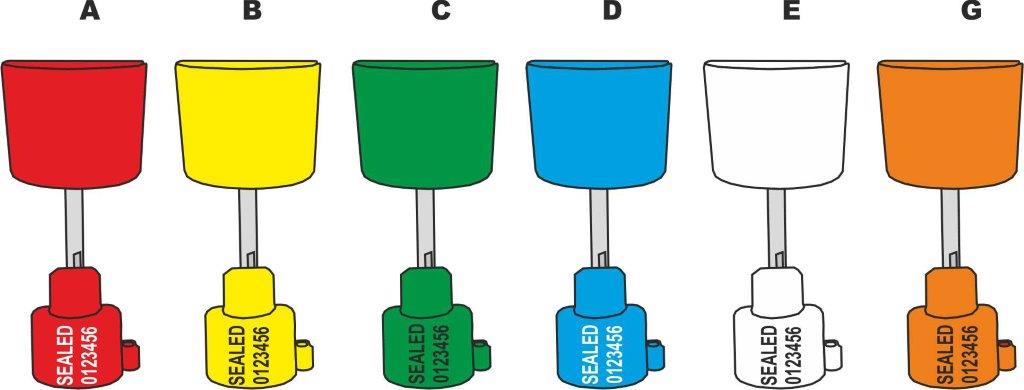

Personalisation logo	Yes on request
Electronic specification
Reading distance handheld reader	12 m
Reading distance gate reader	20 m
Battery	Yes (3V)
Memory read / write	Yes
Cycle read / write	100.000
Memory size	1 Kbyte
Password protection	yes
Tamper Detection	yes
TID (tag unique identification)	yes
S/N in memory the same normal seal	yes
RTC (real time clock system)	yes
Record in memory timestamp seal closed	yes
Record in memory timestamp seal tamper	yes
Record in memory timestamp log event	yes
Unique association between pin and bolt	yes
Lifetime if seal is active (electronic part)	1 year
Integration with handheld reader	Libraries available
Integration with gate reader	Libraries available
